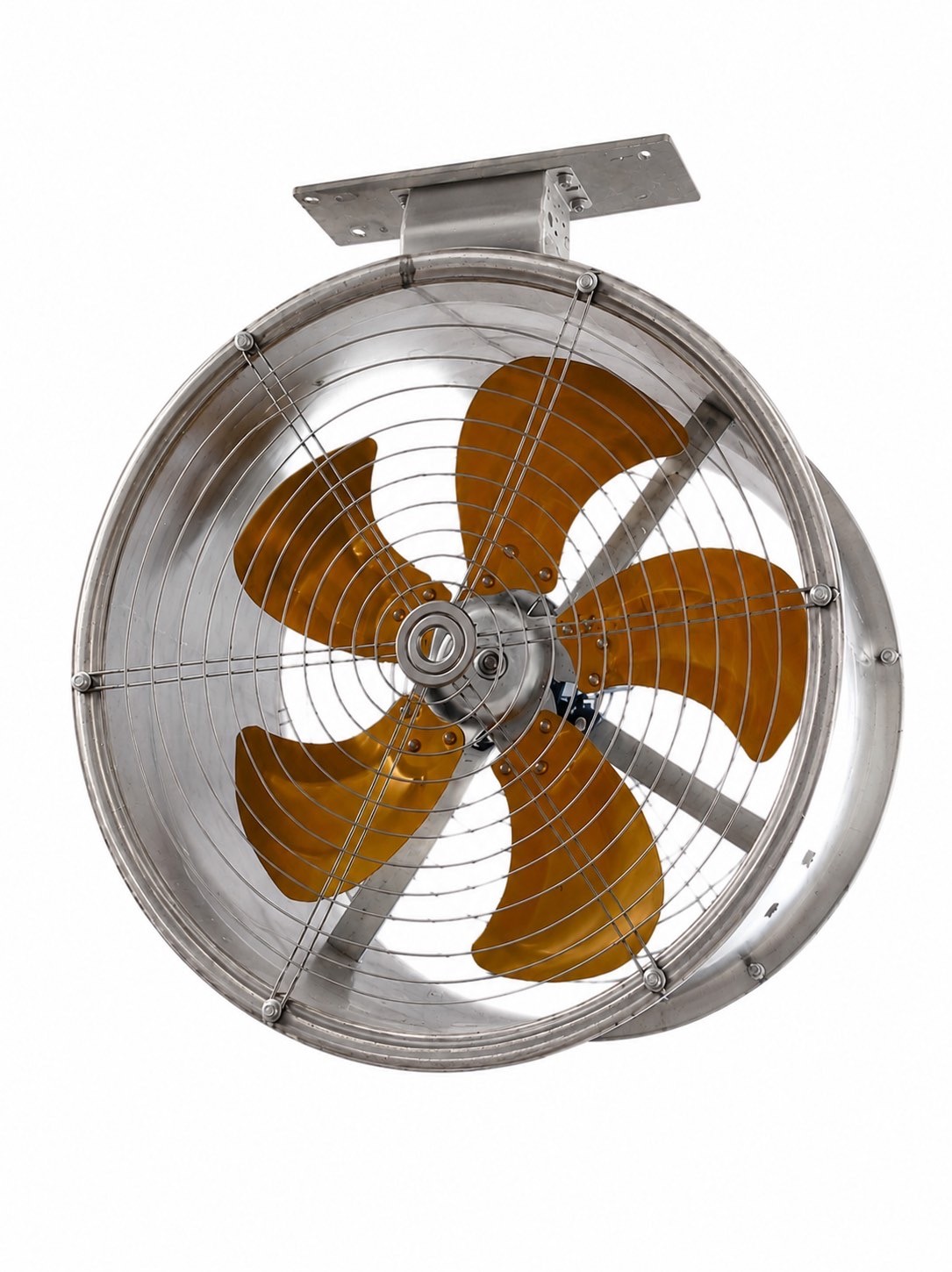

Circulation Fan TK500
The TK500 is a circulation fan designed for use in low and confined industrial spaces where maintaining stable air conditions is crucial.
Ideal for: production and assembly halls, workshops, paint shops, warehouses, and other industrial and technical spaces.
Key Features & Advantages
Easy installation: A lightweight housing with multiple suspension options facilitates optimal placement of the fan in buildings.
Resistance: The TK500 is adapted to operate in adverse conditions (high humidity) thanks to the use of appropriate materials: stainless steel, aluminum, and an IP54 motor.
Easy maintenance: In case of failure, all components are easily replaceable and available in our warehouse.
Performance: High performance despite operation in difficult conditions.
Energy efficiency: The motor used is distinguished by low energy consumption relative to its performance.
Work flexibility: Ability to adjust speed.
Ensures uniform air mixing, stabilizing temperature and humidity in the spaces
Reduces the accumulation of pollutants, dust, and harmful fumes and gases, improving safety at work
Improves the microclimate in the facility, supporting the efficiency of production processes and worker comfort
The TK500 features a lightweight housing with several suspension options, facilitating optimal placement of the fan within the facility
The TK500 is designed to operate in harsh conditions (high humidity) thanks to the use of suitable materials: stainless steel, aluminum, and an IP54-rated motor
The air circulation generated by the TK500 circulation fan supports ventilation and heating, allowing further cost reduction and increased efficiency of the aforementioned processes
Power [kW]
Value0.18 (single-phase - 1Φ)
Voltage [V]
Value220
Rated current [A]
Value0.8
Motor speed [rpm]
Value1400
Frequency [Hz]
Value50
Dimensions [mm]
Value500 × 315
Impeller diameter [mm]
Value450
Fan diameter [mm]
Value500
Number of blades [pcs]
Value5
Weight [kg]
Value13
Air flow at 0 Pa [m³/h]
Value5300
Max air flow at 0 Pa [m³/h]
Value6000
Impeller rotation speed [rpm]
Value439
Noise level [dB]
Value<65
| Technical Features | Value |
|---|---|
| Power [kW] | 0.18 (single-phase - 1Φ) |
| Voltage [V] | 220 |
| Rated current [A] | 0.8 |
| Motor speed [rpm] | 1400 |
| Frequency [Hz] | 50 |
| Dimensions [mm] | 500 × 315 |
| Impeller diameter [mm] | 450 |
| Fan diameter [mm] | 500 |
| Number of blades [pcs] | 5 |
| Weight [kg] | 13 |
| Air flow at 0 Pa [m³/h] | 5300 |
| Max air flow at 0 Pa [m³/h] | 6000 |
| Impeller rotation speed [rpm] | 439 |
| Noise level [dB] | <65 |
